SUBCATEGORIES

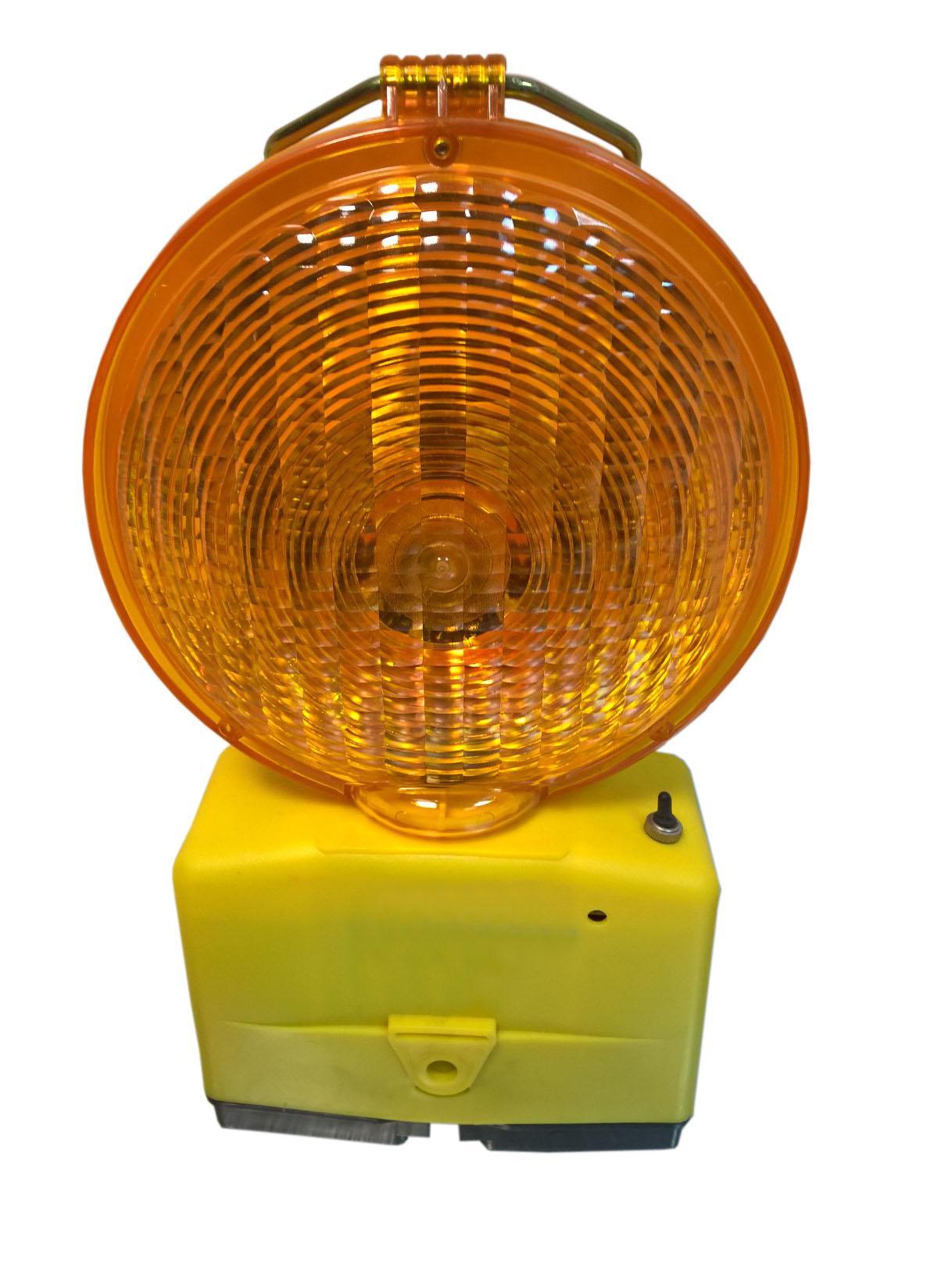

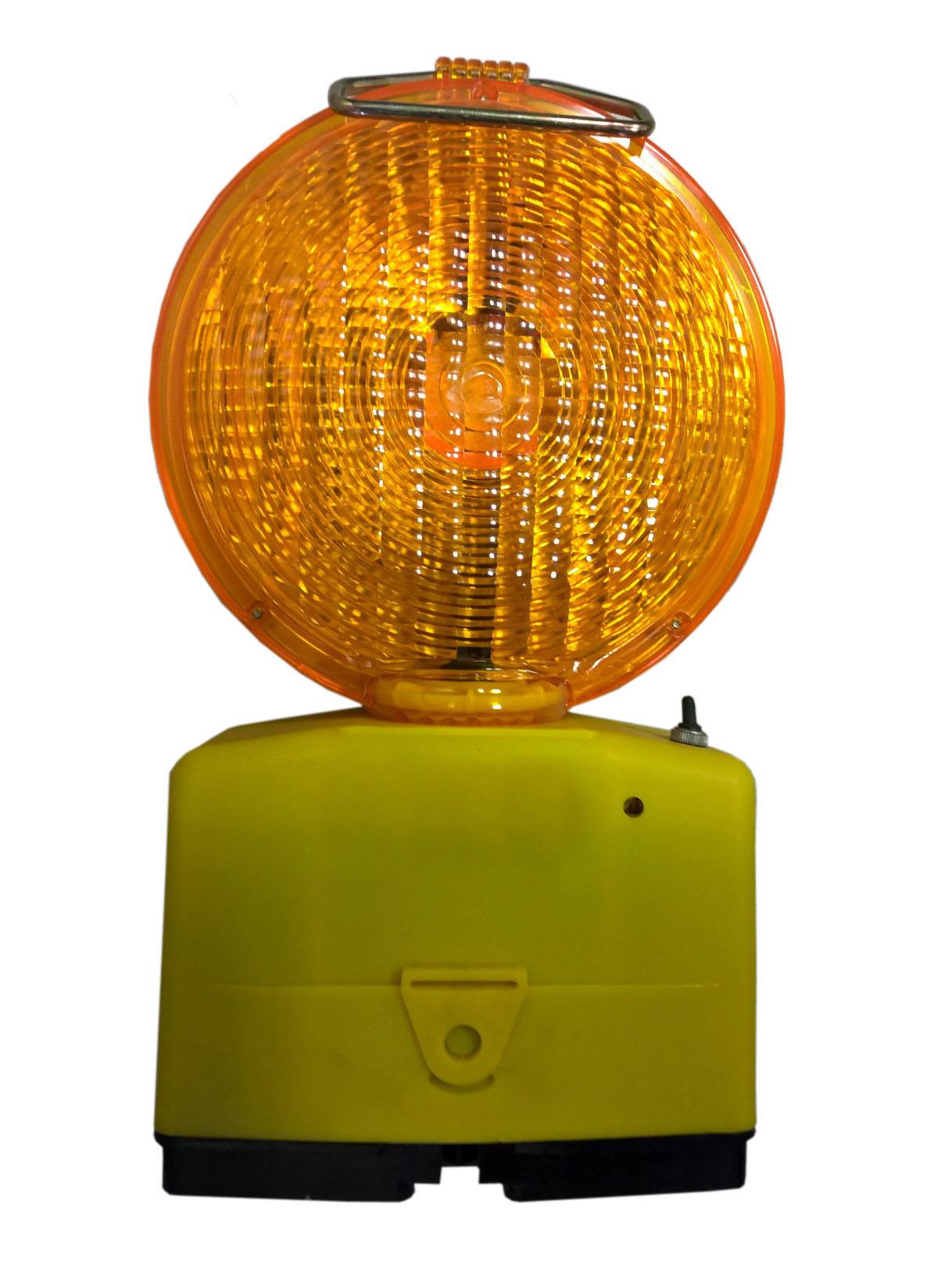

WARNING FLASHING LIGHT XENON ONE SIDED
- Lamp class L8L/L8M according to EN 12352
- Tested according to German Standards
- Synchronization by infrared diodes in each lamp
- Lamp chain of any length and any amount of lamps possible
- Only 1 Super LED, therefore low current consumption and long operating times
- Lens diameter 200 mm
- Automatic day/night adaptation
- Automatic switchover to battery operation when rechargeable battery is discharged
- Better recognition due to additional steady light at night
- Space-saving storage due to slim design
- With four swivel-out support feet, therefore high stability
- Robust quick lock, opening of the lamp housing without tools
- Actual long-life lithium ferro batteries, hardly any self-discharge
- Charge level indication in the lamp head
- Transport and charging cradle optionally supplied with or without supply cable
and vehicle plug (1 cradle per lamp necessary) - Optionally available for synchronous operation
|
With integrated Lithium-Ferro rechargeable battery pack |
40 hrs |
|
Light colour |
amber |
|
Eff. light intensity day / night |
500 cd / 250 cd |
|
Blink-/flash rate |
60 fl./min. |
|
Light source |
one-sided: 1 LED / two-sided: 2 LED |
|
Weight |
ca. 1,8 kg |
|
Dimensions (LxWxH) |
370 x 205 x 95 mm |
WARNING LIGHT OPERATED BE ONE BATTERY
The warning light is made of hard plastic and consists of two parts. On the upper side the plastic is transparent and includes a double sided board with LED lamps, with high brightness, thus providing two sided lighting. The non transparent plastic of the lower side, incorporates the battery, flashing and a photocell board to stop the warning light from operating during the day. opseonenclosure with yellow luminous lens. It incorporates photocell for the closure of the light during day. It also has the capability of continues stable light mode.
Features: The optical light system is based on LED technology ensuring low electricity consumption and therefore longer battery life. It operates using one 6V, 4R25 type, battery and the back side bears a special fixation bracket for mounting on tube and cone.
Specfication: Satisfies European standard EN12352 for class L3. Certificate of conformity CE 1922-CPR-0316
Application: Worksite signage in all kinds of roads
| Height (cm) | 35.5 |
| Width (cm) | 8 |
| Length (cm) | 9.5 |
| Weight (gr) | 47.5 |
| Flash frequency/min | 60 |
| Battery/Pieces | 1 |

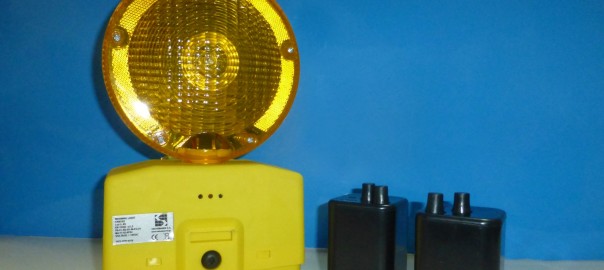

WARNING LIGHT OPERATED BY TWO BATTERIES
The warning light is made of hard plastic and consists of two parts. On the upper side the plastic is transparent and includes a double sided board with LED lamps, with high brightness, thus providing two sided lighting. The non transparent plastic of the lower side, incorporates the battery, flashing and a photocell board to stop the warning light from operating during the day. opseonenclosure with yellow luminous lens. It incorporates photocell for the closure of the light during day. It also has the capability of continues stable light mode.
Features: The optical light system is based on LED technology ensuring low electricity consumption and therefore longer battery life. It operates using two 6V, 4R25 type, batteries and the back side bears a special fixation bracket for mounting on tube and cone.
Specification: Satisfies European standard EN12352 for class L3. Certificate of conformity CE 1922-CPR-0316
Application: Worksite signage in all kinds of roads
| Height (cm) | 32.5 |
| Width (cm) | 8 |
| Length (cm) | 18 |
| Weight (gr) | 52.5 |
| Flash frequency/min | 60 |
| Battery/Pieces | 2 |
PROTECTIVE CAGE FOR FLASHING LAMPS
The protective cage is a metal structure which consists of a concrete base at the bottom and a metal cage on the top. The connection between these two is done by a hollow beam. The internal dimensions of the cage are 40X24C24cm and inside can be placed a flashing lamp. The concrete base has dimensions 30X30X15cm and offers great stability. The cage is painted yellow so that when placed on a worksite on the road it is visible from great distance to passing drivers. The total height of the whole structure is 1,63m and because it is entirely built in our factory, the dimensions can be adapted to the customer’s needs.
