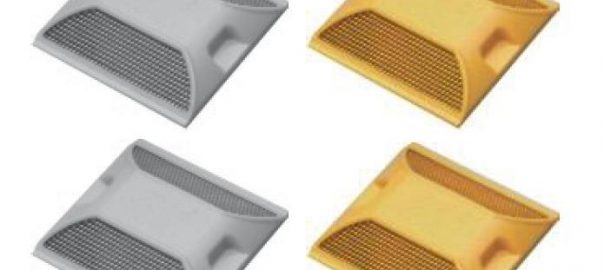

PLASTIC ROAD STUDS
Plastic road studs are made of high density polyethylene. They are ideal for permanent or temporary marking. They have a high degree of visibility during the day because of the white or yellow colour of the body, and during the night because of the prismatic acrylic reflectors that they incorporate. In case of rain they retain their reflective characteristics because of the raised body from the surface of the asphalt.
Features : The base is suitably shaped so as to show excellent adhesion with the asphalt. Material is extremely high strength, and presents constant performance over time both on dry and wet roads. The bottom surface is flat without a fixation element. It is delivered with two-component epoxy adhesive. It is produced in yellow or white colour for temporary or permanent markings respectively.
Specification : Complies with the European standard EN 1463-1: 2009. Certificate of conformity CE 1922-CPR-0255.
Placement : The placement is done by spreading two-component epoxy adhesive on the bottom surface.
Applications : Permanent or temporary signage of all types of roads
|
Type |
permanent |
temporary |
|
Colour |
white |
yellow |
|
Height (mm) |
20 |
20 |
|
Length (mm) |
100 |
100 |
|
Width (mm) |
100 |
100 |
METAL ROAD STUDS
The metal pavement reflectors are made of durable aluminium alloy AISi 12. It is designed in such a way that when installed into the asphalt the fixation element prohibits the road stud from rotating. It is double sided and each side consists of three reflective glass elements of white or yellow color (type P1) or of a large prismatic reflective element made by polycarbonate (type P3).
Features : The base is suitably shaped so as to show excellent adhesion with the asphalt. Material presents extremely high strength, for constant performance over time both on dry and wet roads. The bottom surface is flat and it integrades a fixation element. It is delivered with two-component epoxy adhesive.
Specification : Complies with the European standard EN 1463-1: 2009. Certificate of conformity CE 1922-CPR-0255.
Installation : The installation is achieved with two components epoxy adhesive.
Applications : Permanent signage of all types of roads.
|
TYPE |
P 1A-H1 |
P 2A-H1 |
P 3A |
|
DIMENSIONS (mm) |
85×50 |
98×98 |
105×95 |
|
HEIGHT (mm) |
17.5 |
17.5 |
14 |
|
FIXATION ELEMENT LENGTH (mm) |
50 |
50 |
50 |
|
FIXATION ELEMENT DIAMETER (mm) |
SOLAR ROAD STUDS
The solar road studs are made of aluminium alloy and high durability polycarbonate material. They are ideal for permanent or temporary marking. They have a high degree of visibility during the day due to the prismatic reflective elements of various colours on both sides of the road stud. During the night, visibility is achieved due to the six high power Leds that are automatically actuated by a sensitive photocell.
Features : Each solar road stud converts solar energy collected to electricity, thanks to the solar panel integrated to its surface. The base is suitably shaped so as to present excellent adhesion with the ground. Material presents extremely high strength, and constant performance over time both on dry and wet roads. The bottom surface is flat and it integrates a fixation element. It is delivered with a two-component epoxy adhesive for easy fixation into the asphalt.
Placement : The placement is done by spreading two-component epoxy adhesive on the bottom surface.
Applications : Outdoor parking areas, blind speed areas, ports, junctions, islets authorities walkways.
Weight: 0.525 kgr
Solar Cells: polycrystalline silicon
Capacity battery: Ni-MH (1000mah)
Light source: super luminosity LED
LED Quantity total: 6 lights
Colour of LED: red, green, blue, white, yellow
Operating modes: flashing mode or continuous mode
Maximum energy autonomy: more than 108 hours for operation in flashing mode and more than 24 hours for continues operability
Maximum and minimum operating temperatures: -25 to +75OC
Material: aluminium alloy and polycarbonate
Compressive strength: 30tons
